PREPARATION:
- Clean/degrease the surface, pressure wash if needed, ensuring that all debris and loose material is removed from the area of application. Dry the entire surface thoroughly.
- If any rust is present, remove it, then apply a rust preventative before priming.
- Sand the surface area with 180 grit sandpaper.
- For flexible plastics (TPO, EDPM & PP), you can use 180-320 grit.
- Clean/degrease the area again to remove any particulates from sanding.
- Prime the area according to the surface material type:
- Bare Metal/Aluminum: Apply a DTM primer.
- Galvanized: Apply a self-etching primer.
- Rigid Plastic/Fiberglass: No primer or adhesion promoter needed.
- Flexible Plastic: Apply a layer of adhesion promoter.
- Wood: No primer needed, wood must be fully dry with no stains.
- OEM Coats: No primer needed.
- Scuff sand the primed area with 180 grit, and clear the area of any debris produced from the scuff sand.
APPLICATION:
- Mix all solutions/activators/tints/additives according to the specifications listed per manufacturer instructions.
- Attach the spray gun to the bottle containing the bedliner. Most of our kits come with a spray gun included.
- Recommended air pressure ranges from 40-60 PSI.
- We highly recommend doing a test spray on a separate test panel to ensure accurate pressure and spraying motion before moving to the application area!
- Start spraying the first coat in an even sweeping motion to obtain the correct texture and coverage.
- Recommended spraying temperature is about 68℉-70℉.
- Flash times between coats can vary between kits/brands, but normally ranges anywhere between 15 minutes - 1 hour. Please refer to manufacturer instructions for your specific kit when applying.
- Most bedliners are fully cured within 5-7 days after application.
Tint Size for Bed Liner Kits:
- 3.5 oz (4 pack):

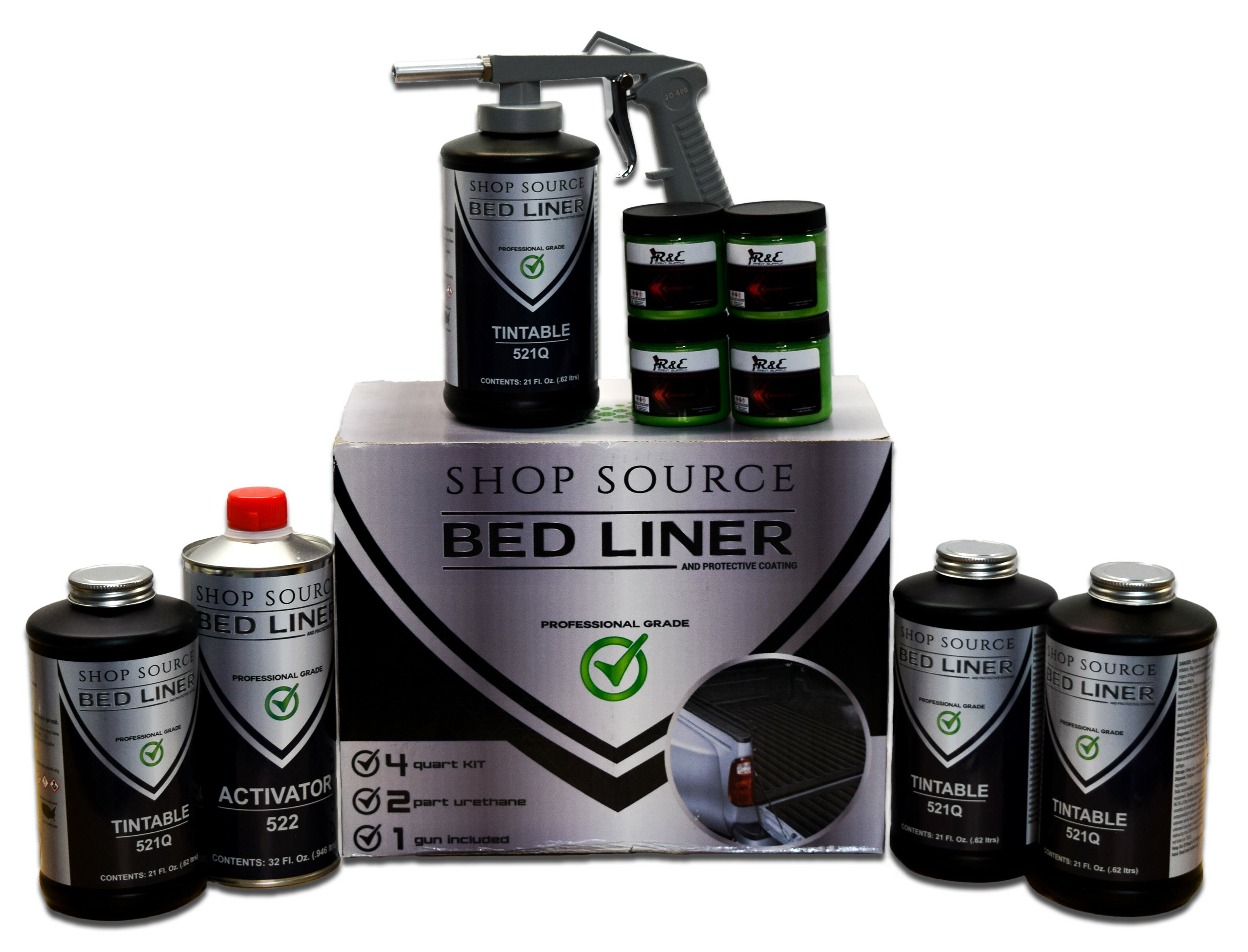

- RE 521, Tintable Bed Liner Kit with Spraygun
- UPO.821, Tintable Spray On Raptor Bed Liner Kit with Spraygun
- SEM 46670, Rock-It-XC Tintable Kit
- Al's Liner SNRT Shake and Roll,Tintable Bedliner
- Al's Liner ALS-SNST Shake and Shoot Tintable Bedliner Kit
- USC 2100-2, Dominator Tintable Urethane Truck Bed Liner
- 8 oz (1 bottle):
- Dominion BCYH, 'Color Your Hippo' Tintable Bedliner
- 8 oz (3 bottles):
- SEM 40660, Pro-Tex Truck Bedliner
**Scorpion XO2, Black Truck Bed Liner and Industrial Coating comes as a 2 gallon or a 9-gallon kit option. To tint Scorpion Yellow, it requires about (2) 8oz bottles per gallon. *Tip: Good idea to spray over light primer or light color under base.
For more information or technical assistance/questions, please call (888)709-8131 and ask to speak to one of our paint specialists!
